SVCI 2020 VAG EDC16U31 Immo Off



FVDI 2020 (SVCI 2020) or FVDI 2018 full has VAG V21.0/V38.1 software activated with specifial functions.  Here we test it on VAG EDC16U31 ECU Immo off together with the Godiag GT100 breakout box.

Follow wiring diagram to connect SVCI, GT100 and ECU

Keep voltage 12v+
Run SVCI software– VAG software- V21.0

Select Engine Control Unit

Identify controol unit infomarion
First read and clear DTC, then reset

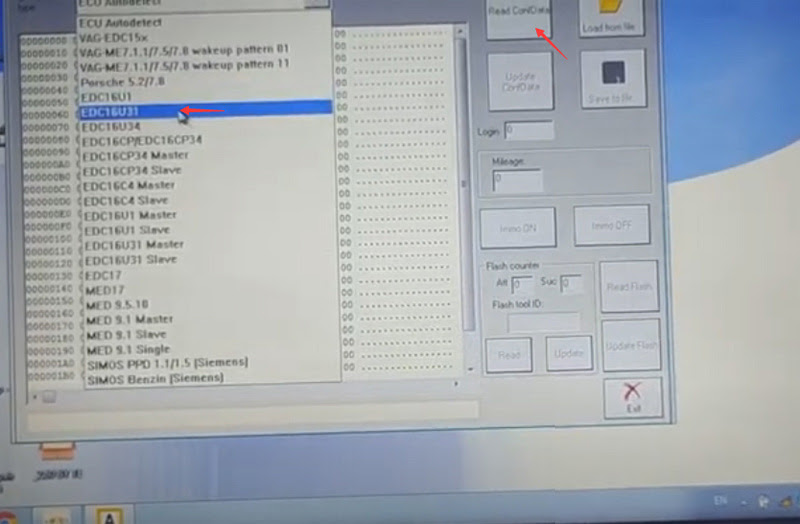

Go to Special Functions- Engine Control Unit- EDC16U31 – Read data

Read data succes

press IMMO Off

Turn ignition OFF within 3 sec
Turn on ignition
Turn ignition OFF
Turn on ignition

Immo changed
Turn ignition OFF
Turn on ignition

Immo status has been changed.

https://fvdicommander.blogspot.com/2021/08/svci-2020-vag-edc16u31-immo-off.html

How to fix X431 V Error while cleaning the DPF solution

A customer gave the following feedback on the Launch X431 V: I used the X431V for the DPF cleaning function. When the progress has reached 9% and it always shows that the connection of the diagnosis connector is abnormal or that the conditions for DPF cleaning are not correct. I've tried it on multiple vehicles and it did the same thing on all of them after this was said. It has been fully updated as stated and there have been more updates since the initial setup, but there is nothing left to update and the device still does not work.

For this problem, Obd2tool.com engineer gave the following suggestion.
Please restore your X431 V 8 inch tablet to factory settings and download the software again.

Guide to restore factory settings:
Please use this function carefully, improper operation may cause the death of X431 V, besides, after the factory settings are restored, all user data will be deleted.

Step-by-step operation:
Step 1: Make sure power supply is 100% (at least 60% power or above), and shutdown X-431 V

Step 2: Long press the power button and volume up button at the side of Launch X431 V, to open the machine, and then come to the menu

Step 3: In the menu, power button = Enter key, volume button = up and down key.
Press the volume button moves to line 5 “wipe data/factory reset”, and press the power button to confirm.
At this time, come to the next menu, press the volume button move to the line with “Yes”, press the power button to confirm

Step 4: After this step is done, it will back to menu 1 (step 1), then move to “wipe cache partition “.
Step 5: Finally, move to “reboot system”, confirm and reboot the machine, then X431 pro is restored to factory settings.



How to Register & Update for Autel MP808 Diagnostic Scanner



This article is a guide to register & update Autel MaxiPRO MP808 diagnostic scanner. The procedure is almost the same for Autel MaxiCOM MK808, Autel MaxiDAS DS808K and Autel MaxiCheck MX808.

Note: Make sure the Autel MP808 device is connected with strong WiFi.

How to register?

1.  Go to the login page, press “Create an Autel ID”;

2.  Enter email, press “Send >> OK”, a verification email will be sent to activate;

3.  Enter password & verification code to sign up.

Your new account is successfully created. Please register your device with the product serial number.

Press “Register”.

It will display serial no. and the device no. automatically, press “Register”.

Serial no. registration succeeded, your device is successfully registered.

You can log in Autel’s official web https://www.autel.com/ to check your device and account after registration.

How to update?

1.  Install system app.

Go to “Update” to download and install the “OS”, “System Program” & “AutoVIN” app separately.

Autel MP808 Android system will upgrade the app automatically…

When update is completed. Press “OK” and launch the MaxiPRO application again.

2.  Install vehicle maker app.

We can select “Update All” on top left corner or just select some in need to update. You’ve gonna have to leave it for about hours…

Once done, there’s no more updates available.

Yanhua Mini ACDP Not Obtain A000 Module Solution



Problem:

I got the Yanhua Mini ACDP with Mercedes gearbox module 16 to clone VGS3 NAG3 gearbox. It failed me and said not obtain license from A000 module.

What is the A000 module? module 16 is not for this gearbox?

Solution:

Module 16 (with license A101) works on VGS2-NAG2, VGS3-NAG2 gearbox only.

For VGS3 NAG3, you need new module 19 with license A000.

Module 19 works with other brands gearbox as well, including

VW/Audi DQ380/DQ381 0DE gearbox clone; supports Mercedes-Benz 9GT (VGS-NAG3) gearbox clone, supports BMW 7-dual clutch (GETAG 7DCT) gearbox clone. More other brands are under development.

Program 2021 GMC YUKON All Smart Keys Lost by OBDSTAR X300 DP Plus



The least expensive way to program new proximity on this 2021 GMC YUKON when all keys lost should be OBDSTAR X300 DP Plus (key master dp plus) and CAN FD GM adapter.  You just need OEM GM key, no dealer code needed.  It is gonna be so much cheaper way.

The GM adapter is compatible with the following new GM models:
Brand     Model     Year
Cadillac     Escalade     2021
CT4
CT5     2020
Chevrolet     TRAX/TRACKER(4A)
CAVALIER/ONIX(4A)
Tahoe     2021
Silverado
Suburban
GMC     Yukon
Sierra
Denali
Buick     Envision
GL8(LSY)

Let’s get started.

Get right into IMMO to start programming this new OEM key proximity for this vehicle.
Before you start, connect x300dp plus to WiFI, constantly available Hotspot or Local signal. Online calculation requires network connection.
Go to update make sure you have both gm data as well as the gm IMMO software  V33.24 or above.

Connect CAN FD adapter to the OBDB port using OBD cable and OBDII cable
Select IMMO, then under American’s GM and GM V33.30

Next, select Program keys – GMC – USA Canada – Yukon – Proximity – 2021 – Without Pin Code – All Keys Lost

Choose Enter to erase all the keys on the system
Ensure CAN FD GM adapter is in place to continue
Press the Push to Start button continually or open and close door every 10 seconds during communication

The system is searching the key
This keeps anti-theft from locking the system and canceling the process.

Once accessories and Dash light up, you have entered the anti-theft system.
10 minutes wait mandatory

after 10 minutes theft deterrent system will be deactivated.
confirm old key deletion and continue to add new keys
now we start to add new key to the system.
program new key 1 of 2 into Vehicle signal coil located in the Control driver cup holder

On screen read “Ready for Key 1”, press Push to start button for 2 seconds to add key

When screen reads “Ready for Key 2”, replace key 1 and press Push to start button for 2 seconds to add key

When screen reads “Ready for Key 3”,all keys are programmed, you can exit the system.

confirm desired key number and exit

once the system configures, press and hold Start-Stop button 16 seconds to close key learning

Key learning complete
Turn off ignition switch, open and close door just once.

when the loading car is completed, the system is fully closed.
Then test all key buttons, functions and prox start.

All working. This is a super easy and cheap way to get it done.

Autel MK808 vs. Xtool X100 PAD2 Which to Buy



All lots of people asking the difference between Autel MaxiCOM MK808 and XTOOL X100 Pad2.  Check the comparison below. Hope it helps.

Immobilizer key programming:

MK808 didn’t program certain keys when it came to like a Toyota Prius lost all keys. (not sure for the feature updates), it cannot do BMW, VAG models. The x100 pad2 can do it. The reason why people buy it because this one can program fobs like wireless fobs which all new cars come with nowadays where it has the wireless fob. This machine programs them flawlessly.

X100 pad2 does program keys for BMW.  But it cannot do Benz.  Xtool does work on Lexus but mk808 wasn’t.

MaxiCOM MK808 regular keys programming has worked out flawlessly. This one has programmed regular keys quickly, but the process on x100pad2 has been a lot faster.

If you are looking for something to program all keys and different thing like that I would go with x100 pad2.  Because this one programs more vehicles than mk808. x100 pad2 it is more level for like a shop if you don’t like keys and stuff for shopping. If you want something for you regular fo at home mechanic person or have limited budget, you can get mk808.

Diagnosis & Special functions:

xtool x100 pad2 has common diagnosis of the car like scanning oil system, these are both all system scanners.

They both have the battery reset, when it comes to German cars where you can reset the throttle, mk808 has it as well.

with MK808 I have programmed the tire pressure sensor on a 2013 Acura TL the wheel speed sensor. Xtool also do TPMS reset, I didn’t try it.

They both have SAS steering angle reset function. The x100 pad2 failed on the Acura but the cheaper MK808 goes perfectly fine on this.

they also have battery reset function.

but mk808 has a few more settings that xtool doesn’t have.  They added in all the time with the updates.

Update:

Mk808 has a lots of updates. Xtool does have updates but not frequently as Autel.

MK808 annual software update subscription: $129 (1 year free update)

X100 pad2 annual software update subscription: $400 (2 years free update)

Price:

The price of mk808 and the price of x100 pad2 is night and day now.

MK808: $449

X100 pad2 full: $949, basic version: $729

Suggestion:

Xtool x100 pad 2 is not a bad machine, it works great and very quickly. It is a lot faster because it is a higher-level tablet and it has a faster processer.

Mk808 Menu

autel mk808 diagnostic system works great, it is color vibrant, picture looks like better, the setting is better.  There are a bunch of cars that this one is capable of doing key programming as long as a key has a blade.  But it cannot program wireless fobs.

xtool x100 pad2 is focusing on just the keys, mk808 is great at scanning systems also great at programming keys.

xtool x100 pad2 also comes with a set of different adapters for different cars. mk808 does not.
xtool also has EEPROM function can read eeprom, mk808 does noot.

If you want always updates, MK808 is your choice.

If you want to do regular blade key programming, go for MK808. If need to do wireless key (fobs), x100 pad2 is your choice.
